Cảm biến dịch chuyển Omron Z4W-V

Liên hệ

Liên hệ :

08 88 44 88 99

Liên hệ :

0978 63 73 78

Liên hệ :

0909 63 73 78

Liên Hệ Tư Vấn

Lưu ý: Quý khách có thể tùy chọn mẫu sản phẩm hoặc liên hệ để được tư vấn

• Điểm đo: 25 mm; phạm vi đo: ±4 mm.

• Điều chỉnh dễ dàng, đèn báo phạm vi/ổn định.

• Bộ khuếch đại tích hợp dễ sử dụng.

• Tốc độ phản hồi cao: 5 ms.

• Vệt tia nhìn thấy được.

• Xếp hạng vỏ bọc: IP66.

Đặc điểm

Sensing distance	Resolution	Model
25±4 mm	10 μm	Z4W-V25R 5M

Thông số kỹ thuật

Ratings

Measurement range	±4 mm
Measurement point	25±1 mm
Light source	Red LED
Spot diameter	2-mm dia. (at measurement point)
Resolution	10 microns (See Note. 1)
Linearity	±3% FS (See Note. 2)
Response time	5 ms (In case of white alumina ceramic. Linearity change according to object.)
Temperature characteristics	±0.3% FS/°C
Warming up time	3 min (within 1% of stable value)
Indicators	Stability: Stable range: Lit green Operating range: Not lit Dark: Lit red Range: In range: Green Out of range: Red
Outputs	Analog output: 4 to 20 mA/±4 mm Load impedance: 300Ω max. DARK output: NPN open collector 50 mA max., 30 VDC Residual voltage: 1 V max.
External light	3,000 ln (incandescent light)

Characteristics

Power supply voltage	12 to 24 VDC±10%: ripple (p-p) 10% max.
Current consumption	80 mA max.
Vibration resistance	Destruction: 10 to 55 Hz (1.5-mm double amplitude) for 2 sweeps of 15 min each in X, Y, and Z directions
Shock resistance	Destruction: 500 m/s² for 3 times each in X, Y, and Z directions
Ambient temperature	Operating: -10° to 55°C (with no icing)
Ambient humidity	35% to 85% (with no icing)
Degree of protection	IP66
Weight	150 g (with 5-m cable); 50 g (without cable)
Attachments	Mounting bracket, mounting screws, resistor (250Ω, 0.5 W)

Note: 1. Resolution
The resolution is the peak-to-peak displacement conversion value of the analog output.
(Conditions: white alumina ceramic at the measurement point)

Note: 2. Response Time

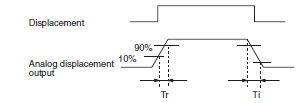

The delays are the 10% to 90% rising and falling times of the analog output in response to a sudden change in
the displacement.

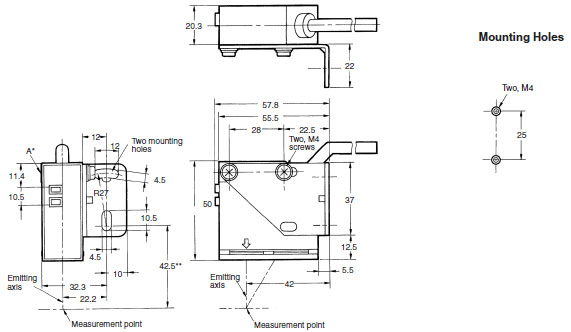

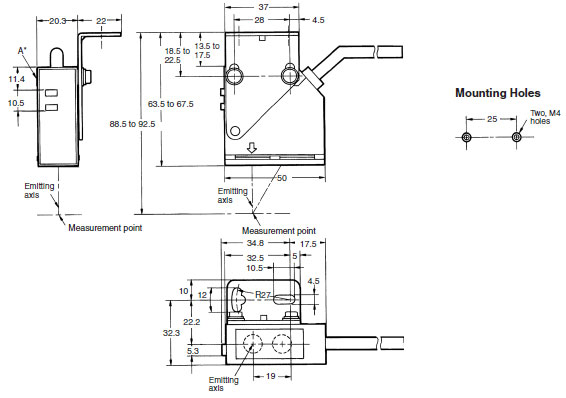

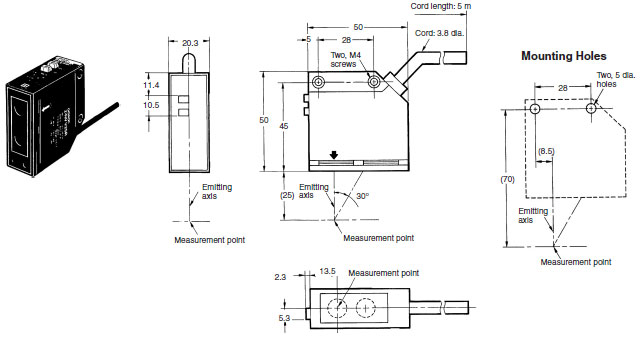

Kích thước

Z4W-V25R

With Mounting Bracket 1

* A mounting bracket can be attached to this face of the sensor.
** This distance can be extended up to 44.5 mm. When this distance is 44.5 mm in length, the angle of the optical axis
can be adjusted after mounting by approximately ±5 max.
