Cảm biến điện dung Omron E2K-C

Liên hệ

Liên hệ :

08 88 44 88 99

Liên hệ :

0978 63 73 78

Liên hệ :

0909 63 73 78

Liên Hệ Tư Vấn

Lưu ý: Quý khách có thể tùy chọn mẫu sản phẩm hoặc liên hệ để được tư vấn

Cảm biến điện dung đường dài với độ nhạy có thể điều chỉnh

Đặc điểm

Sensors

Appearance		Sensing distance (Adjustable range)	Output configuration	Model
				Operation mode
				NO	NC
Standard Models	Unshielded	25 mm (3 to 25 mm)	DC 3-wire, NPN	E2K-C25ME1 2M	E2K-C25ME2 2M
			DC 3-wire, PNP	E2K-C25MF1 2M	E2K-C25MF2 2M
			AC 2-wire	E2K-C25MY1 2M	E2K-C25MY2 2M
Noise-resistant Models		20 mm (3 to 20 mm)	DC 3-wire, NPN	E2K-C20MC1 2M	E2K-C20MC2 2M
Noise-resistant Models		20 mm (3 to 20 mm)	AC/DC 2-wire	E2K-C20MT1 2M	E2K-C20MT2 2M

Accessories (Order Separately)

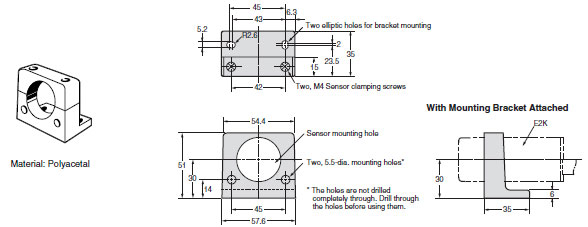

Mounting Brackets

A Mounting Bracket is provided.

Appearance	Model	Quantity	Remarks
	Y92E-A34	1	Provided with the product.

Thông số kỹ thuật

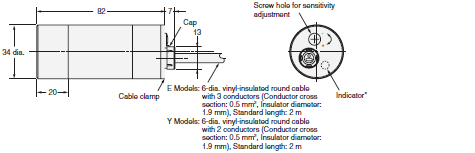

Standard Models

Model		E2K-C25M[]1	E2K-C25MY1
Sensing distance *		25 mm
Sensing distance adjustable range		3 to 25 mm
Detectable object		Conductors and dielectrics
Standard sensing object		Grounded metal plate: 50 × 50 × 1 mm
Differential travel		15% max. of sensing sensing distance (when adjusted to 25 mm ±10% with standard sensing object)
Response frequency		70 Hz	10 Hz
Power supply voltage (operating voltage range)		12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.	100 to 220 VAC (90 to 250 VAC), 50/60 Hz
Current consumption		E and F Models: 10 mA max. at 12 VDC, 16 mA max. at 24 VDC
Leakage current		Y Models: 1 mA max. at 100 VAC (50/60 Hz) with output turned OFF, 2 mA max. at 200 VAC (50/60 Hz) with output turned OFF
Control output	Load current	200 mA max.	5 to 200 mA (resistive load)
Control output	Residual voltage	2 V max. (Load current: 200 mA, Cable length: 2 m)	Refer to Engineering Data on Data Sheet
Indicators		Detection indicator (red)	Operation indicator (red)
Operation mode (with sensing object approaching)		E1, F1, and Y1 Models: NO E2, F2, and Y2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
Protection circuits		Reverse polarity protection, Surge suppressor	Surge suppressor
Ambient temperature range		Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±15% max. of sensing distance at 23°C in the temperature range of -10 to 55°C ±25% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±2% max. of sensing distance at the rated voltage in rated voltage ±15% range	±2% max. of sensing distance at the rated voltage in rated voltage +20%, -10% range at 100 VAC, ±20% range at 200 VAC
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case	1,500 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s² 10 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP66
Connection method		Pre-wired Models (Standard cable length: 2 m)
Weight (packed state)		Approx. 200 g
Materials	Case	Heat-resistant ABS
Materials	Sensing surface	Heat-resistant ABS
Accessories		Mounting Bracket, M4 screws, Instruction manual

* The set distances are sensing distances applicable to standard sensing objects. Refer to Engineering Data on Data
Sheet for other materials.

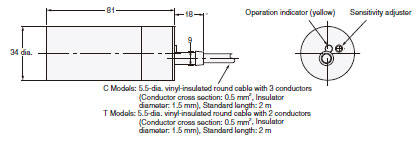

Noise-resistant Models

Model		E2K-C20MC1	E2K-C20MT1
*Sensing distance 1**		20 mm
Sensing distance adjustable range		3 to 20 mm
Detectable object		Conductors and dielectrics
Standard sensing object		Grounded metal plate: 50 × 50 × 1 mm
Differential travel		15% max. of sensing distance (when adjusted to 20 mm ±10% with standard sensing object)
*Response frequency 2**		40 Hz	AC power: 25 Hz, DC power: 40 Hz
Power supply voltage (operating voltage range)		12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.	24 to 240 VAC (20 to 250 VAC), 50/60 Hz; 24 to 240 VDC (20 to 250 VDC)
Current consumption		13 mA max. at 24 VDC	—
Leakage current		—	1.5 mA max. at 24 VDC, 1.7 mA max. at 110 VAC (50/60 Hz), 2.5 mA max. at 250 VAC (50/60 Hz) Refer to Engineering Data on Data Sheet.
Control output	Load current	250 mA max.	5 to 200 mA (resistive load)
Control output	Residual voltage	2.5 V max. (Load current: 250 mA, Cable length: 2 m)	AC power: 10 V max., DC power: 8 V max. Refer to Engineering Data on Data Sheet.
Indicators		Operation indicator (yellow)
Operation mode (with sensing object approaching)		C1/T1 Models: NO C2/T2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
Protection circuits		Reverse polarity protection, Load short- circuit protection	—
Ambient temperature range		Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±15% max. of sensing distance at 23°C in the temperature range of -10 to 55°C ±25% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±2% max. of sensing distance at the rated voltage in rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case	1,500 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s² 10 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP65
*Connection method 3**		Pre-wired Models (Standard cable length: 2 m)
Weight (packed state)		Approx. 240 g
Materials	Case	PBT
Materials	Sensing surface	PBT
Accessories		Mounting Bracket, M4 screws, Instruction manual

*1. The set distances are sensing distances applicable to standard sensing objects. Refer to Engineering Data on Data
Sheet for other materials.
*2. The response frequency is an average value.
*3. Only 2-m cables are available. Use a cable with a conductor cross section of 0.5 mm² or greater to extend the cable.
