• Vỏ và giá đỡ được làm bằng Fluororesin kháng hóa chất.
• Khoảng cách phát hiện tối đa: 10 mm.
Liên hệ
• Vỏ và giá đỡ được làm bằng Fluororesin kháng hóa chất.
• Khoảng cách phát hiện tối đa: 10 mm.
Appearance | Sensing distance | Output configuration | Operation mode | Model | |
---|---|---|---|---|---|
Shielded | M12 | 2 mm | DC 2-wire | NO | E2FQ-X2D1 2M |
DC 3-wire, NPN | E2FQ-X2E1 2M | ||||
M18 | 5 mm | DC 2-wire | E2FQ-X5D1 2M | ||
DC 3-wire, NPN | E2FQ-X5E1 2M | ||||
AC 2-wire | E2FQ-X5Y1 2M | ||||
M30 | 10 mm | DC 2-wire | E2FQ-X10D1 2M | ||
DC 3-wire, NPN | E2FQ-X10E1 2M | ||||
AC 2-wire | E2FQ-X10Y1 2M |
Model | E2FQ-X2E1 E2FQ-X2D1 | E2FQ-X5E1 E2FQ-X5D1, E2FQ-X5Y1 | E2FQ-X10E1 E2FQ-X10D1, E2FQ-X10Y1 | |
---|---|---|---|---|
Sensing distance | 2 mm ±10% | 5 mm ±10% | 10 mm ±10% | |
Set distance | 0 to 1.6 mm | 0 to 4 mm | 0 to 8 mm | |
Differential travel | E1/Y1 Models: 10% max. of sensing distance, D1 Models: 20% max. of sensing distance | |||
Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Data Sheet.) | |||
Standard sensing object | Iron, 12 × 12 × 1 mm | Iron, 18 × 18 × 1 mm | Iron, 30 × 30 × 1 mm | |
Response frequency * | E1 Models: 1.5 kHz D1 Models: 800 Hz | E1 Models: 600 Hz D1 Models: 500 Hz | E1 Models: 400 Hz D1 Models: 300 Hz | |
Y1 Models: 25 Hz | ||||
Power supply voltage (operating voltage range) | E1 Models: 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max. Y1 Models: 24 to 240 VAC (20 to 264 VAC), 50/60 Hz D1 Models: 12 to 24 VDC (10 to 36 VDC), ripple (p-p): 20% max. | |||
Current consumption | E1 Models: 17 mA max. | |||
Leakage current | D1 Models: 0.8 mA max., Y1 Models: 1.7 mA max. (at 200 VAC) | |||
Control output | Load current | E1 Models: 200 mA max., D1 Models: 5 to 100 mA, Y1 Models: 5 to 300 mA | ||
Residual voltage | E1 Models: 2 V max. (Load current: 200 mA, Cable length: 2 m) Y1 Models: Refer to Engineering Data on Data Sheet. D1 Models: 3 V max. (Load current: 100 mA, Cable length: 2 m) | |||
Indicators | E Models: Detection indicator (red), Y Models: Operation indicator (red), D Models: Operation indicator (red), Setting indicator (green) (NO only) | |||
Operation mode (with sensing object approaching) | E1/D1/Y1 Models: NO (Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.) | |||
Protection circuits | E1 Models: Load short-circuit protection, Reverse polarity protection, Surge suppressor, D1/Y1 Models: Surge suppressor | |||
Ambient temperature range | Operating/Storage: -25 to 70°C (with no icing or condensation) | |||
Ambient humidity range | Operating/Storage: 35% to 95% (with no condensation) | |||
Temperature influence | ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C | |||
Voltage influence | E1 Models: ±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range D1 Models: ±2.5% max. of sensing distance at rated voltage in the rated voltage ±20% range Y1 Models: ±1% max. of sensing distance at rated voltage in the rated voltage ±10% range | |||
Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case | |||
Dielectric strength | E1/D1 Models: 1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case Y Models: 4,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case | |||
Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | |||
Shock resistance | Destruction: 500 m/s2 10 times each in X, Y, and Z directions | Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions | ||
Degree of protection | IEC 60529 IP67, in-house standards: oil-resistant | |||
Connection method | Pre-wired Models (Cable length: 2 m) | |||
Weight (packed state) | Approx. 70 g | Approx. 130 g | Approx. 170 g | |
Materials | Case | Fluororesin | ||
Sensing surface | ||||
Clamping nuts | ||||
Toothed washer | Zinc-plated iron | |||
Cable | Vinyl chloride | |||
Accessories | Instruction manual |
Note:The response frequency is an average value.
Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object, and a set distance of half the sensing distance.
Note:Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

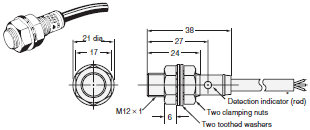

Note:6-dia. vinyl-insulated round cable with 3 conductors (Flame-resistant, Conductor cross section: 0.5 mm2, Insulator diameter: 1.9 mm), Standard length: 2 m
The cable can be extended up to 200 m (separate metal conduit).

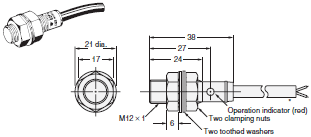

Note:6-dia. vinyl-insulated round cable with 2 conductors (Flame-resistant, Conductor cross section: 0.5 mm2, Insulator diameter: 1.9 mm), Standard length: 2 m
The cable can be extended up to 200 m (separate metal conduit).

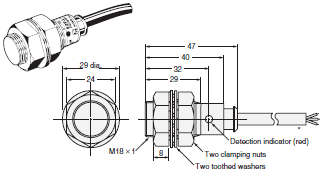

Note:6-dia. vinyl-insulated round cable with 3 conductors (Flame-resistant, Conductor cross section: 0.5 mm2, Insulator diameter: 1.9 mm), Standard length: 2 m
The cable can be extended up to 200 m (separate metal conduit).
Note:6-dia. vinyl-insulated round cable with 2 conductors (Flame-resistant, Conductor cross section: 0.5 mm2, Insulator diameter: 1.9 mm), Standard length: 2 m
The cable can be extended up to 200 m (separate metal conduit).

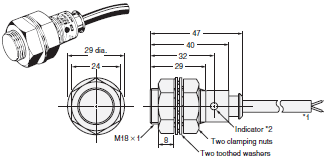

Note:D1: Operation indicator (red) and Setting indicator (green)
Y1: Operation indicator (red)

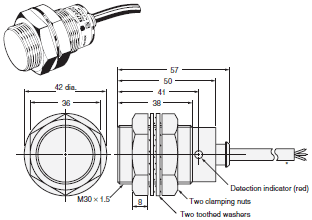

Note:6-dia. vinyl-insulated round cable with 3 conductors (Flame-resistant, Conductor cross section: 0.5 mm2, Insulator diameter: 1.9 mm), Standard length: 2 m
The cable can be extended up to 200 m (separate metal conduit).
Note:6-dia. vinyl-insulated round cable with 2 conductors (Flame-resistant, Conductor cross section: 0.5 mm2, Insulator diameter: 1.9 mm), Standard length: 2 m
The cable can be extended up to 200 m (separate metal conduit).

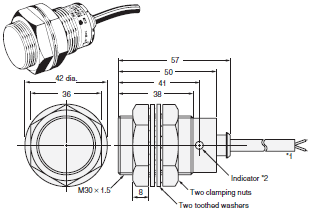

Note:D1: Operation indicator (red) and Setting indicator (green)
Y1: Operation indicator (red)
