• Bạn có thể kết nối tối đa ba Khối Liên hệ trong một giai đoạn để mở rộng nhiều giai đoạn.
• Cấu trúc đầu nối vít tương thích với đầu nối uốn tròn. (Loại khối đầu nối bắt vít)
• Có thể cố định các đầu nối ngay cả khi khối tiếp điểm được gắn. (Loại khối đầu nối trục vít)
• Khối tiếp xúc có thể được gắn theo bất kỳ hướng nào để dễ dàng lắp ráp.
Công tắc xoay có khóa Omron A22NK
Liên hệ
Liên hệ :
08 88 44 88 99
Liên hệ :
0978 63 73 78
Liên hệ :
0909 63 73 78
Liên Hệ Tư Vấn
Lưu ý: Quý khách có thể tùy chọn mẫu sản phẩm hoặc liên hệ để được tư vấn
Dễ sử dụng
Thu nhỏ
• Không cần thêm không gian bên vì hướng đi dây đã được sửa đổi. (Loại khối đấu dây Push-In Plus)
• Thiết kế nhỏ gọn.
Sự an toàn
• Cần khóa dễ thao tác giúp khóa an toàn.
• Khối tiếp xúc dễ lắp giúp bảo vệ ngón tay.
• Không có kết nối lỏng lẻo của hệ thống dây có nghĩa là sử dụng miễn phí dịch vụ bảo trì. (Loại khối đầu cuối Push-In Plus)
Dòng sản phẩm
• Đáp ứng tiêu chuẩn an toàn toàn cầu.
• Có thể được cài đặt trong hai loại kích thước lỗ bảng điều khiển: 22,3 và 25,5 dia.
• Các nút và gờ có nhiều màu sắc, hình dạng và chất liệu khác nhau.
• Mức độ bảo vệ theo tính năng tiêu chuẩn: IP66 và NEMA 13.
Đặc điểm

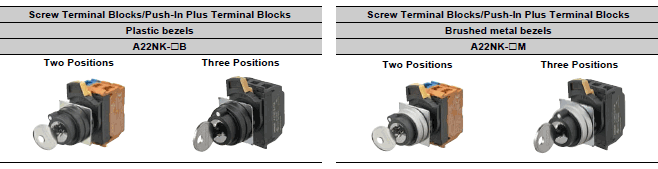

List of Models

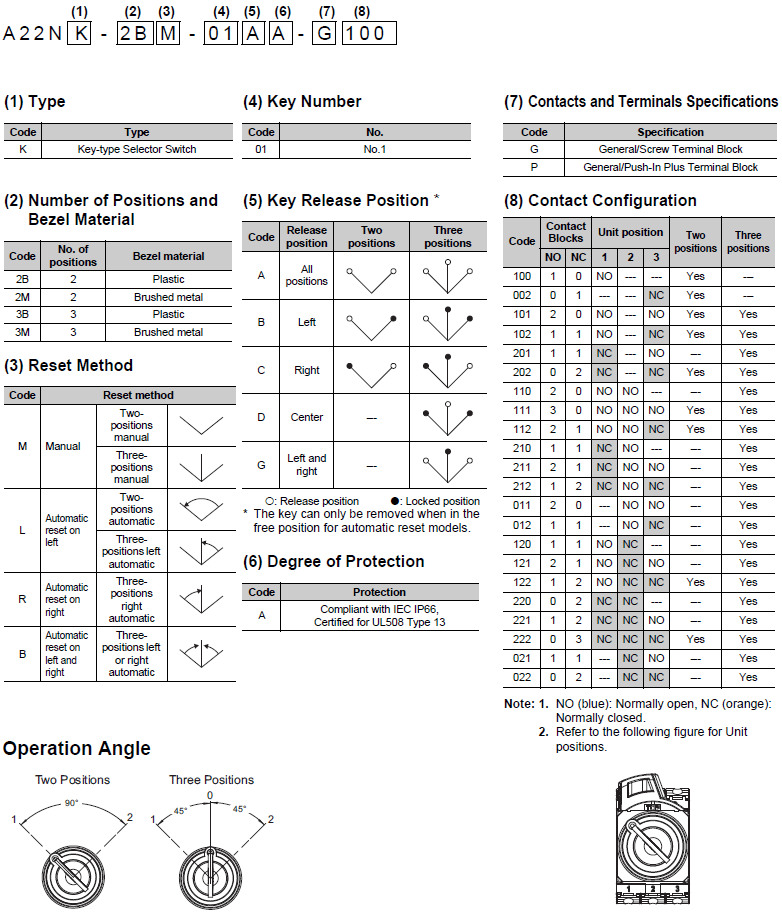

Model Number Structure
Model Number Legend
Shipped as a set that includes the Operation Unit, Mounting Collar, and Contact Block.
For information on combinations, refer to Ordering Information.
Model Numbers for Sets
Structure
Contact Configuration Table
Two Positions
| No. of outputs | Code | Contact configuration | Unit position | Contacts | Position | |
|---|---|---|---|---|---|---|
| 1 | 2 | |||||
| 1 | 100 | SPST-NO | 1 | NO | ON | |
| 2 | — | — | — | |||
| 3 | — | — | — | |||
| 1 | 002 | SPST-NC | 1 | — | — | — |
| 2 | — | — | — | |||
| 3 | NC | ON | ||||
| 2 | 102 | SPST-NO/ SPST-NC |
1 | NO | ON | |
| 2 | — | — | — | |||
| 3 | NC | ON | ||||
| 2 | 101 | DPST-NO | 1 | NO | ON | |
| 2 | — | — | — | |||
| 3 | NO | ON | ||||
| 2 | 202 | DPST-NC | 1 | NC | ON | |
| 2 | — | — | — | |||
| 3 | NC | ON | ||||
| 3 | 111 | 3PST-NO | 1 | NO | ON | |
| 2 | NO | ON | ||||
| 3 | NO | ON | ||||
| 3 | 222 | 3PST-NC | 1 | NC | ON | |
| 2 | NC | ON | ||||
| 3 | NC | ON | ||||
| 3 | 122 | SPST-NO/ DPST-NC |
1 | NO | ON | |
| 2 | NC | ON | ||||
| 3 | NC | ON | ||||
| 3 | 112 | DPST-NO/ SPST-NC |
1 | NO | ON | |
| 2 | NO | ON | ||||
| 3 | NC | ON | ||||
Operation Angle
Three Positions
| No. of outputs | Code | Contact configuration | Unit position | Contacts | Position | ||
|---|---|---|---|---|---|---|---|
| 1 | 0 | 2 | |||||
| 2 | 110 | DPST-NO | 1 | NO | ON | ||
| 2 | NO | ON | ON | ||||
| 3 | — | — | — | — | |||
| 2 | 011 | DPST-NO | 1 | — | — | — | — |
| 2 | NO | ON | ON | ||||
| 3 | NO | ON | |||||
| 2 | 101 | DPST-NO | 1 | NO | ON | ||
| 2 | — | — | — | — | |||
| 3 | NO | ON | |||||
| 2 | 220 | DPST-NC | 1 | NC | ON | ON | |
| 2 | NC | ON | |||||
| 3 | — | — | — | — | |||
| 2 | 022 | DPST-NC | 1 | — | — | — | — |
| 2 | NC | ON | |||||
| 3 | NC | ON | ON | ||||
| 2 | 202 | DPST-NC | 1 | NC | ON | ON | |
| 2 | — | — | — | — | |||
| 3 | NC | ON | ON | ||||
| 2 | 120 | SPST-NO/ SPST-NC |
1 | NO | ON | ||
| 2 | NC | ON | |||||
| 3 | — | — | — | — | |||
| 2 | 102 | SPST-NO/ SPST-NC |
1 | NO | ON | ||
| 2 | — | — | — | — | |||
| 3 | NC | ON | ON | ||||
| 2 | 210 | SPST-NO/ SPST-NC |
1 | NC | ON | ON | |
| 2 | NO | ON | ON | ||||
| 3 | — | — | — | — | |||
| 2 | 201 | SPST-NO/ SPST-NC |
1 | NC | ON | ON | |
| 2 | — | — | — | — | |||
| 3 | NO | ON | |||||
| 2 | 012 | SPST-NO/ SPST-NC |
1 | — | — | — | — |
| 2 | NO | ON | ON | ||||
| 3 | NC | ON | ON | ||||
| 2 | 021 | SPST-NO/ SPST-NC |
1 | — | — | — | — |
| 2 | NC | ON | |||||
| 3 | NO | ON | |||||
| 3 | 111 | 3PST-NO | 1 | NO | ON | ||
| 2 | NO | ON | ON | ||||
| 3 | NO | ON | |||||
| 3 | 222 | 3PST-NC | 1 | NC | ON | ON | |
| 2 | NC | ON | |||||
| 3 | NC | ON | ON | ||||
| 3 | 122 | SPST-NO/ DPST-NC |
1 | NO | ON | ||
| 2 | NC | ON | |||||
| 3 | NC | ON | ON | ||||
| 3 | 212 | SPST-NO/ DPST-NC |
1 | NC | ON | ON | |
| 2 | NO | ON | ON | ||||
| 3 | NC | ON | ON | ||||
| 3 | 221 | SPST-NO/ DPST-NC |
1 | NC | ON | ON | |
| 2 | NC | ON | |||||
| 3 | NO | ON | |||||
| 3 | 211 | DPST-NO/ SPST-NC |
1 | NC | ON | ON | |
| 2 | NO | ON | ON | ||||
| 3 | NO | ON | |||||
| 3 | 121 | DPST-NO/ SPST-NC |
1 | NO | ON | ||
| 2 | NC | ON | |||||
| 3 | NO | ON | |||||
| 3 | 112 | DPST-NO/ SPST-NC |
1 | NO | ON | ||
| 2 | NO | ON | ON | ||||
| 3 | NC | ON | ON | ||||
Operation Angle
Ordering Information
Model Numbers for Sets
Shipped as a set that includes the Operation Unit, Mounting Collar, and Contact Block.
Two-position, Key-type Selector Switches
| Appearance | Bezel material |
No. of outputs |
Model | (3) Reset method |
(5) Key release positions |
(8)(8)(8) Contact configuration |
|---|---|---|---|---|---|---|
Plastic bezels |
2B | 1 | A22NK-2B(3)-01(5)A-G(8)(8)(8) | M: Manual L: Automatic reset on left |
A: All positions B: Left C: Right |
100 002 |
| A22NK-2B(3)-01(5)A-P(8)(8)(8) | ||||||
| 2 | A22NK-2B(3)-01(5)A-G(8)(8)(8) | 102 101 202 |
||||
| A22NK-2B(3)-01(5)A-P(8)(8)(8) | ||||||
| 3 | A22NK-2B(3)-01(5)A-G(8)(8)(8) | 111 222 122 112 |
||||
| A22NK-2B(3)-01(5)A-P(8)(8)(8) | ||||||
Brushed metal bezels |
2M | 1 | A22NK-2M(3)-01(5)A-G(8)(8)(8) | 100 002 |
||
| A22NK-2M(3)-01(5)A-P(8)(8)(8) | ||||||
| 2 | A22NK-2M(3)-01(5)A-G(8)(8)(8) | 102 101 202 |
||||
| A22NK-2M(3)-01(5)A-P(8)(8)(8) | ||||||
| 3 | A22NK-2M(3)-01(5)A-G(8)(8)(8) | 111 222 122 112 |
||||
| A22NK-2M(3)-01(5)A-P(8)(8)(8) | ||||||
Metal bezels |
2R | 1 | A22NK-2R(3)-01(5)A-G(8)(8)(8) | 100 002 |
||
| A22NK-2R(3)-01(5)A-P(8)(8)(8) | ||||||
| 2 | A22NK-2R(3)-01(5)A-G(8)(8)(8) | 102 101 202 |
||||
| A22NK-2R(3)-01(5)A-P(8)(8)(8) | ||||||
| 3 | A22NK-2R(3)-01(5)A-G(8)(8)(8) | 111 222 122 112 |
||||
| A22NK-2R(3)-01(5)A-P(8)(8)(8) |
Three-position, Key-type Selector Switches
| Appearance | Bezel material |
No. of outputs |
Model | (3) Reset method |
(5) Key release positions |
(8)(8)(8) Contact configuration |
|---|---|---|---|---|---|---|
Plastic bezels |
3B | 2 | A22NK-3B(3)-01(5)A-G(8)(8)(8) | M: Manual L: Automatic reset on left R: Automatic reset on right B: Automatic reset on left and right |
A: All positions B: Left C: Right D: Center G: Left and right |
110 011 101 220 022 202 120 102 210 201 012 021 |
| A22NK-3B(3)-01(5)A-P(8)(8)(8) | ||||||
| 3 | A22NK-3B(3)-01(5)A-G(8)(8)(8) | 111 222 122 212 221 211 121 112 |
||||
| A22NK-3B(3)-01(5)A-P(8)(8)(8) | ||||||
Brushed metal bezels |
3M | 2 | A22NK-3M(3)-01(5)A-G(8)(8)(8) | 110 011 101 220 022 202 120 102 210 201 012 021 |
||
| A22NK-3M(3)-01(5)A-P(8)(8)(8) | ||||||
| 3 | A22NK-3M(3)-01(5)A-G(8)(8)(8) | 111 222 122 212 221 211 121 112 |
||||
| A22NK-3M(3)-01(5)A-P(8)(8)(8) | ||||||
Metal bezels |
3R | 2 | A22NK-3R(3)-01(5)A-G(8)(8)(8) | 110 011 101 220 022 202 120 102 210 201 012 021 |
||
| A22NK-3R(3)-01(5)A-P(8)(8)(8) | ||||||
| 3 | A22NK-3R(3)-01(5)A-G(8)(8)(8) | 111 222 122 212 221 211 121 112 |
||||
| A22NK-3R(3)-01(5)A-P(8)(8)(8) |
Subassemblies
You can order Operation Units, Mounting Collars, and Contact Blocks individually. Use them in combination for models that are not available as assembled Switches. They can also be used as inventory for maintenance parts.
Operation Units
| Bezel material and shape | Plastic |
Brushed metal |
Metal |
(1) Key release positions |
|
|---|---|---|---|---|---|
| No. of positions |
Reset method | Model | Model | Model | |
| 2 | Manual | A22NZ-2BM-01(1)A | A22NZ-2MM-01(1)A | A22NZ-2RM-01(1)A | A: All positions B: Left C: Right |
| Automatic reset on left |
A22NZ-2BL-01(1)A | A22NZ-2ML-01(1)A | A22NZ-2RL-01(1)A | ||
| 3 | Manual | A22NZ-3BM-01(1)A | A22NZ-3MM-01(1)A | A22NZ-3RM-01(1)A | A: All positions B: Left C: Right D: Center G: Left and right |
| Automatic reset on left |
A22NZ-3BL-01(1)A | A22NZ-3ML-01(1)A | A22NZ-3RL-01(1)A | ||
| Automatic reset on right |
A22NZ-3BR-01(1)A | A22NZ-3MR-01(1)A | A22NZ-3RR-01(1)A | ||
| Automatic reset on left and right |
A22NZ-3BB-01(1)A | A22NZ-3MB-01(1)A | A22NZ-3RB-01(1)A | ||
Subassemblies (Common)
Subassemblies
You can order Operation Units, LED Lamps, Mounting Collars, and Contact Blocks individually. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.
Mounting Collar
| Appearance | Model |
|---|---|
 |
A22NZ-H-01 |
Contact Blocks
| Appearance | Terminals Specifications | Contact Specification |
Model |
|---|---|---|---|
 |
Screw terminal block | SPST-NO (blue) | A22NZ-S-G1A |
| SPST-NC (orange) | A22NZ-S-G1B | ||
 |
Push-In Plus terminal block | SPST-NO (blue) | A22NZ-S-P1A |
| SPST-NC (red) | A22NZ-S-P1B | ||
 |
Push-In Plus terminal block | DPST-NO (blue) | A22NZ-S-P2A |
| DPST-NC (red) | A22NZ-S-P2B | ||
| SPST-NO/SPST-NC (white) | A22NZ-S-P2C |
Thông số kỹ thuật
Certified Safety Standard Ratings
UL 508 (File No. E76675), CSA C22.2 No.14
6 A 240 VAC, 10 A 120 VAC
TÜV (EN60947-5-1)
AC-15 3 A 240 VAC
DC-13 4 A 24 VDC
CCC (GB/T14048.5)
AC-15 3 A 240 VAC
DC-13 4 A 24 VDC
Application Standards
UL1059 and UL486E (Push-In Plus terminal block type)
Ratings
Contacts (Standard Load)
| Rated insulation voltage | 600 V | |||||
|---|---|---|---|---|---|---|
| Rated carry current | 10 A | |||||
| Rated voltage | 24 V | 120 V | 240 V | 380 V | 440 V | |
| AC at 50/60 Hz | Resistive load (AC-12) | 10 A | 10 A | 6 A | 2A | 2 A |
| Inductive load (AC-15) | 10 A | 6 A | 3 A | 1.9 A | 1.6 A | |
| DC | Resistive load (DC-12) | 8 A | 2.2 A | 1.1 A | — | — |
| Inductive load (DC-13) | 4 A | 1.1 A | 0.55 A | — | — | |
Note: 1. The above ratings were obtained by conducting tests under the following conditions.
(1) Ambient temperature: 20 ±2°C
(2) Ambient humidity: 65% ±5% RH
(3) Operating frequency: 30 operations/minute
2. Minimum applicable load: 10 mA at 5 VDC.
Characteristics
| Item | Key-type Selector Switches | |
|---|---|---|
| Allowable operating frequency |
Mechanical | 30 operations/minute max. |
| Electrical | 30 operations/minute max. | |
| Insulation resistance | 100 MΩ min. (at 500 VDC) | |
| Contact resistance | 100 mΩ max. (initial value) | |
| Dielectric strength | Between terminals of same polarity |
2,500 VAC at 50/60 Hz for 1 min. (initial value) |
| Between each terminal and ground |
2,500 VAC at 50/60 Hz for 1 min. (initial value) | |
| Vibration resistance | Malfunction | 10 to 55 Hz, 1.5-mm double amplitude (malfunction within 1 ms) |
| Shock resistance | Malfunction | 1,000 m/s2 max. (malfunction within 1 ms) |
| Durability | Mechanical | 500,000 operations min. (Switches with 3 positions: 300,000 operations min.) |
| Electrical | 500,000 operations min. (Switches with 3 positions: 300,000 operations min.) (250 VAC, 3 A, with an inductive load having power factor cos θ = 0.4) |
|
| Ambient operating temperature*1 | -25 to 70°C | |
| Ambient operating humidity | 35% to 85% RH | |
| Ambient storage temperature*1 | -40 to 80°C | |
| Degree of protection*2 | Conforming to IP66, NEMA13 | |
| Electric shock protection class | Class II | |
| PTI (tracking characteristic) | 175 | |
| Degree of contamination (application environment) |
3 (EN 60947-5-1) | |
| Weight | Approx. 65 g (for 1NC/1NO) | |
*1. With no icing or condensation.
*2. Degree of protection from the front of the panel.
Operating Characteristics (for SPST-NO/SPST-NC)
| Item | Key-type Selector Switches | |
|---|---|---|
| Manual reset | Automatic reset | |
| Total travel force (torque) (maximum TTF) | 0.6 N·m | 0.6 N·m |
| Total travel (TT) | 2 positions: Approx. 90°, 3 positions: Approx. 45° | |
| Resetting force (torque) (RF) | 0.5 N·m max. | — |
Examples of Linked Contact Blocks (Screw terminal block type)
| Key-type Selector Switches | ||
|---|---|---|
| 2 positions | 3 positions | |
| Linking example |  |
 |
Note: If you increase the number of Contact Blocks, evaluate the Switch under actual working conditions before permanent installation and use the Switch within a number of switching operations that will not adversely affect the Switch’s performance.
Kích thước
(Unit: mm)
Lighted and Non-lighted Key-type Selection Switches
Two-position Switches with Plastic Bezels
A22NK-2B[]-01[]A-G
A22NK-2B[]-01[]A-P
Three-position Switches with Plastic Bezels
A22NK-3B[]-01[]A-G
A22NK-3B[]-01[]A-P
Two-position Switches with Brushed Metal Bezels
A22NK-2M[]-01[]A-G
A22NK-2M[]-01[]A-P
Three-position Switches with Brushed Metal Bezels
A22NK-3M[]-01[]A-G
A22NK-3M[]-01[]A-P
Two-position Switches with Metal Bezels
A22NK-2R[]-01[]A-G
A22NK-2R[]-01[]A-P
Three-position Switches with Metal Bezels
A22NK-3R[]-01[]A-G
A22NK-3R[]-01[]A-P
Depth with Linked Units
(Screw terminal block type)
Depth when a double-contact unit is mounted
(Push-In Plus terminal block type)
Subassemblies (Common)
Mounting Collar
A22NZ-H-01
Screw terminal block
Contact Blocks
A22NZ-S-G1[]
Push-In Plus Terminal Blocks
Contact Blocks (Single Contact)
A22NZ-S-P1[]
Contact Blocks (Double Contact)
A22NZ-S-P2[]
Accessories and Tools
Protective Cover
A22NZ-A303
Plastic Hole Plug
A22NZ-A-401
Metal Hole Plug
A22NZ-A-402
Lock Ring
A22NZ-A-403
Lock Ring
A22NZ-A-50501
Reinforcement Plate
A22NZ-A-C01
Control Box
A22NZ-A-B101
A22NZ-A-B101Y
Control Box (2 holes)
A22NZ-A-B102
Control Box (3 holes)
A22NZ-A-B103
Control Box
A22NZ-A-B201
A22NZ-A-B01Y
Control Box (2 holes)
A22NZ-A-B202
Control Box (3 holes)
A22NZ-A-B203
Sealing cap
For Flat Models A22Z-3600F
For projection models A22Z-3600T
For full-guard models A22Z-3600G
Resin Attachment for 30 dia.
A22Z-A30
Legend Plate Frames
General A22NZ-A-50103
Large A22NZ-A-51103
Legend Plates
General A22Z-3443[]-[]
Large A22Z-3453[]
Tightening Wrench
A22NZ-A-301
LED Lamp Extractor
A22NZ-A-302
Cap Tightening Wrench
A22Z-3908
Phụ kiện
Accessories and Tools (Order Separately)
| Item | Appearance | Classification | Model | Remarks | |
|---|---|---|---|---|---|
| Protective Cover |
 |
— | A22NZ-A-303 | A protector designed to prevent incorrect operation. Cannot be used together with other accessories. (Rubber seal included.) For 22.3 and 25.5-mm panel holes diameter. Key-type selector switches cannot be used. |
|
| Plastic Hole Plug |
 |
Round | A22NZ-A-401 | Can be plugged into precut panel holes for future expansion. Applicable panel thickness: 0.8 to 3.0 mm For 22.3-mm panel hole diameter. |
|
| Metal Hole Plug |
 |
Round | A22NZ-A-402 | Can be plugged into precut panel holes for future expansion. Applicable panel thickness: 0.8 to 6.0 mm (Rubber seal included.) For 22.3-mm panel hole diameter. |
|
| Lock Ring |  |
Round | A22NZ-A-403 | Used when a more secure lock is required to prevent rotation inside the Operation Unit. (Rubber seal included.) For 22.3-mm panel hole diameter. Can be used together with the A22NZ-A- 50501 Lock Ring. |
|
| Lock Ring |  |
— | A22NZ-A-50501 | Used when a more secure lock is required to prevent rotation of the Operation Unit. Can be used together with the A22NZ-A- 403 Lock Ring. Can be used with the A22N Series and the A30N Series. |
|
| Reinforcement Plate |
 |
— | A22NZ-A-C01 | Used to reinforce Contact Blocks and Lighting Units, Refer to Data Sheet for mounting instructions. |
|
| Key |  |
— | A22NZ-K-01 | Used with a key-type selector switch. | |
| Control Box |  |
1 hole | A22NZ-A-B101 | For 22.3-mm panel hole diameter, A30N[]
cannot be used. Two switches for screw terminal block type cannot be linked. The A22NZ-A-B01Y and The A22NZ-A-B2[] model cannot be used for a double-contact unit of the Push-In Plus terminal block type. |
|
| A22NZ-A-B201 | |||||
| 1 hole, yellow box | A22NZ-A-B101Y | ||||
| A22NZ-A-B01Y | |||||
| 2 holes | A22NZ-A-B102 | ||||
| A22NZ-A-B202 | |||||
| 3 holes | A22NZ-A-B103 | ||||
| A22NZ-A-B203 | |||||
| Connector |  |
Suitable Cable Diameter (mm) |
7 to 9 dia. | A22Z-3500-1 | Plastic connector used to extend a cable from the switch box. Refer to Data Sheet for details. |
| 9 to 11 dia. | A22Z-3500-2 | ||||
| Sealing Caps |  |
For flat models | A22Z-3600F | Used to prevent dust or water from entering the Operation Unit. Color: opaque Material: silicon For 22.3 and 25.5-mm panel holes diameter. Knob-type and key-type selector switches cannot be used. |
|
| For projection models | A22Z-3600T | ||||
| For full-guard models | A22Z-3600G | ||||
| Resin Attachment for 30 dia. |
 |
Round | A22Z-A30 | Use when mounting to a panel with a 30- dia. hole. Refer to Data Sheet for details. Purchase and mount a separate Lock Ring when using an indicator. |
|
| Small Legend Plate Frame |
 |
Black | A22NZ-A-50103 | Legend Plate with no text on black background included. For 22.3-mm panel hole diameter. |
|
| Small Legend Plates (Standard Size) |
 |
Without text | A22Z-3443B | Black | |
| A22Z-3443R | Red | ||||
| A22Z-3443W | White | ||||
| A22Z-3443C | Transparent | ||||
| ○ | A22Z-3443R-2 | White text on red background | |||
| STOP | A22Z-3443R-4 | ||||
| | | A22Z-3443B-1 | White text on black background | |||
| START | A22Z-3443B-3 | ||||
| ON | A22Z-3443B-5 | ||||
| OFF | A22Z-3443B-6 | ||||
| UP | A22Z-3443B-7 | ||||
| DOWN | A22Z-3443B-8 | ||||
| POWER ON | A22Z-3443B-9 | ||||
| OFF-ON | A22Z-3443B-10 | ||||
| Large Legend Plate Frame |
 |
Black | A22NZ-A-51103 | Legend Plate with no text on black background included. For 22.3-mm panel hole diameter. |
|
| Large Legend Plates |
 |
Without text | A22Z-3453B | Black | |
| A22Z-3453R | Red | ||||
| A22Z-3453W | White | ||||
| A22Z-3453C | Transparent | ||||
| Tightening Wrench |
 |
— | A22NZ-A-301 | Used to tighten Mounting Nuts from the back of the panel. |
|
| LED Lamp Extractor |
 |
— | A22NZ-A-302 | Made of rubber and used to easily remove and attach LED Lamps. |
|
| Cap Tightening Wrench |
 |
— | A22Z-3908 | Used to replace the Caps on Flat, Projected, and Full-guard Pushbutton Switches. |
|
MODEL
| STT | Chi tiết | Tiêu đề | Tải xuống |
| 1 | DANH SÁCH MODEL | A22NK | Item list of A22NK |
TÀI LIỆU
| STT | Chi tiết | Tiêu đề | Tải xuống |
| 1 | TÀI LIỆU | A22NK |  |
Be the first to review “Công tắc xoay có khóa Omron A22NK”
SẢN PHẨM LIÊN QUAN
Liên hệ
Liên hệ
Liên hệ
Reviews
There are no reviews yet.
